Compotec GG-200
Grating (570 x 570 mm).
- Shape:
- Square
- Dimensions:
- 570mm x 570mm
- Available Classes:
- D400, C250, B125, A15
- Weight:
- 25 kg
Composite Gully Gratings
Compotec composite gully gratings are used at stormwater inlets on roads, kerbs, car parks and pedestrian areas. Gratings are produced in a range of sizes and load classes, designed in line with EN 124.
Gully Gratings Models
Compotec GG-201
Grating (640 x 345 mm).
- Shape:
- Rectangular
- Dimensions:
- 640mm x 345mm
- Available Classes:
- D400, C250, B125, A15
- Weight:
- 16 kg
Compotec GG-202
Grating (485 x 485 mm).
- Shape:
- Square
- Dimensions:
- 485mm x 485mm
- Available Classes:
- D400, C250, B125, A15
- Weight:
- 15.5 kg
Compotec GG-203
Grating (400 x 600 mm).
- Shape:
- Rectangular
- Dimensions:
- 400mm x 600mm
- Available Classes:
- D400, C250, B125, A15
- Weight:
- 15.5 kg
Compotec GG-204
Grating (600 x 600 mm).
- Shape:
- Square
- Dimensions:
- 600mm x 600mm
- Available Classes:
- D400, C250, B125, A15
- Weight:
- 27 kg

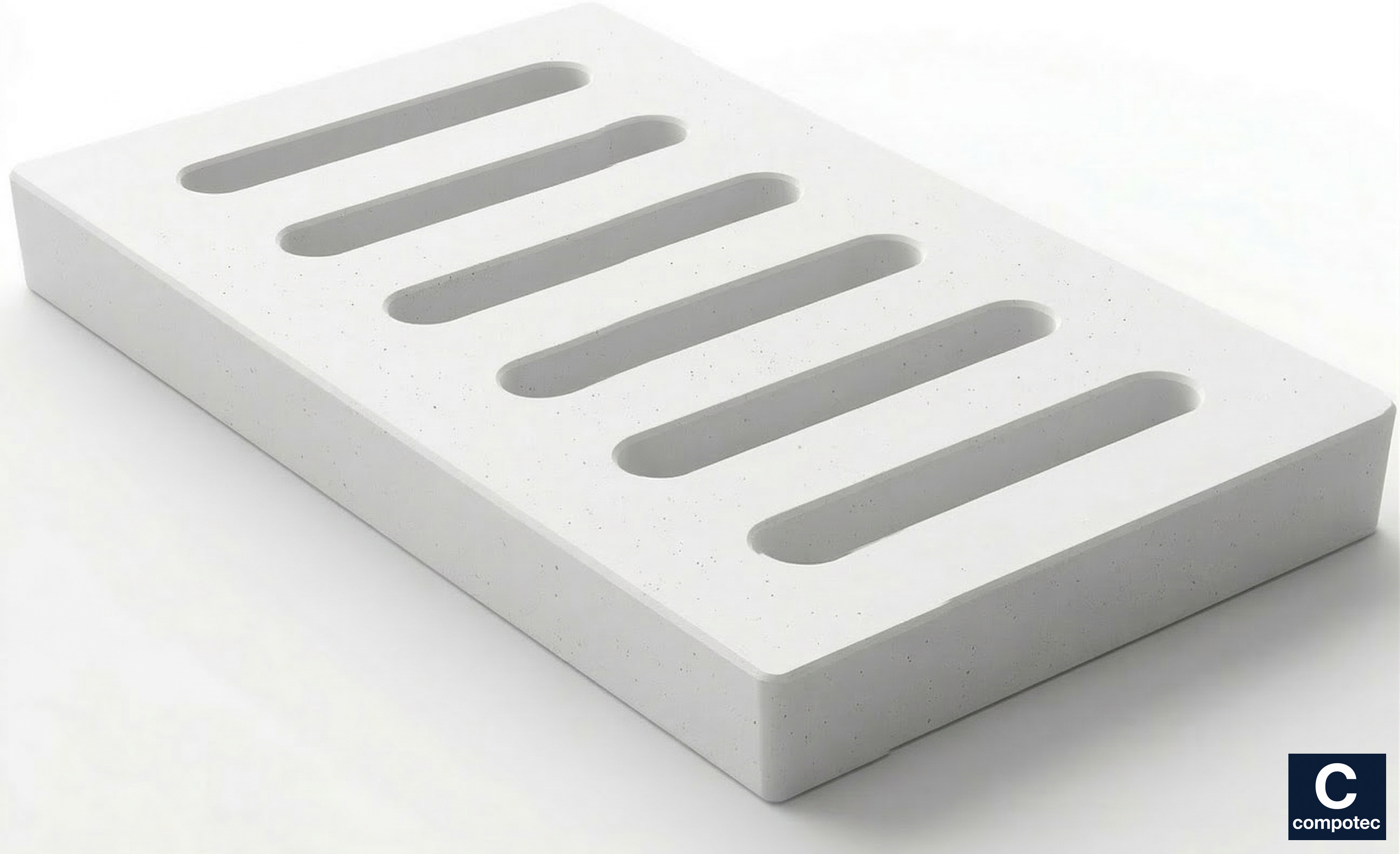

Compotec GG-205
Grating (300 x 500 mm).
- Shape:
- Rectangular
- Dimensions:
- 300mm x 500mm
- Available Classes:
- D400, C250, B125, A15
- Weight:
- 10.5 kg
Compotec GG-206
Grating (400 x 450 mm).
- Shape:
- Rectangular
- Dimensions:
- 400mm x 450mm
- Available Classes:
- D400, C250, B125, A15
- Weight:
- 11.5 kg
Compotec GG-207
Grating (460 x 660 mm).
- Shape:
- Rectangular
- Dimensions:
- 460mm x 660mm
- Available Classes:
- D400, C250, B125, A15
- Weight:
- 22 kg
Compotec GG-208
Grating (200 x 500 mm).
- Shape:
- Rectangular
- Dimensions:
- 200mm x 500mm
- Available Classes:
- A50, A15
- Weight:
- 1.7 kg
Selecting a gully grating
Match the load class to the traffic at the inlet, then confirm the clear opening and outer dimensions against the existing chamber or channel.
Composite gratings do not corrode in standing water and silt, and have no scrap value, which reduces replacement caused by theft.
Applications
Municipal road drainage, kerbside gullies, car parks and forecourts, industrial yards, pedestrian and landscaped areas.
